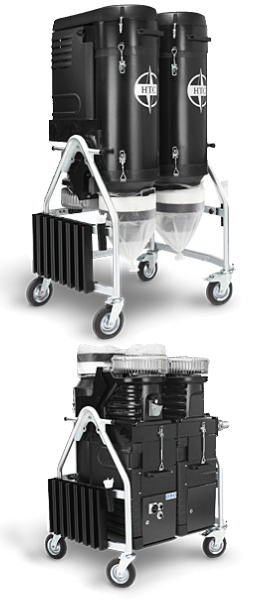

HTC 10 iAD Vacuum System

HTC 10 iAD is recommended for medium to larger grinding machines.

The vacs in the iAD series are developed using the latest technology and they are specially adapted for grinding machines. The list of benefits with the new vacs compared to traditional vac systems is long.

  • Continuous operation
  • Integrated pre-separator
  • Automatic cleaning of filters
  • Maximal separation of small dust particles
  • Possible to rotate for maintenance and transportation
  • Compact
  • Sturdier Longopac
  • Change of Longopac while operating
  • Possible to place a pallet beneath to avoid heavy lifts of Longopac
  • High capacity
  • Adjusted H13 filter (HEPA-classification)
  • Durable hoses
  • Specially adapted for grinding machines
  • Possibility to connect a hose to lead out the air when grinding (e.g. Epoxy)



Dimensions 1067mm (L)913mm (W) 1554mm (H)
Weight 330 kg
Suction Capacity (m3/h) 1000
Voltage 400V
Power Consumption 16 A
Motors 2
